Sanitary Y-Ball Check Valve mod.SIG/59

+
  • Giraffe Stainless
·　Sizes from 1-1/2" to 3"
·　Two-piece design for better alignment
·　All wetted surfaces are sanitary finish in 316L stainless steel
·　PTFE ball provides a better heat and abrasion resistance
·　Repair kits are available for seat replacement
·　Easy cleaning without tools
·　Air blow check valve can be added
·　Maximum Operating Pressure: 150PSI
·　Operating Temperature Range: 15°f to 200°f

Classification：

sanitary valves

check valve

key word：

+86 138 0669 7418

Sales@giraffestainless.com

Giraffe Stainless

For technical drawings and 3-D models, click on a part number.

Product details

SIG/59 Sanitary Y-Ball check valves are designed to full product flow during processing, once the product flow stops the PTFE ball rolls back to the seat at inlet preventing back flow. Y-Ball check valves are commonly used with liquid products.



Giraffe Stainless

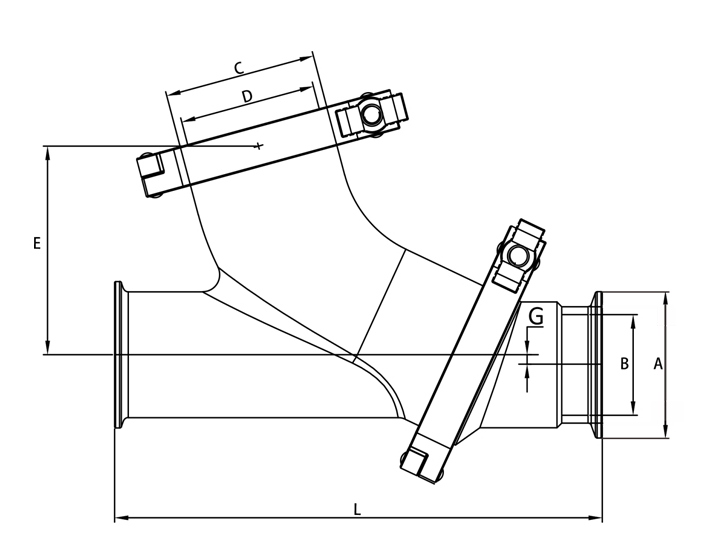

Tube OD A B L G Ball Diameter Max. Pressure Part number 316L
1-1/2" 1.984" 1.370" 7.500" 0.160" 1.600" 150 psi @ 200° F SIG/59-1.5/316L
2" 2.516" 1.870" 8.500" 0.160" 2.100" 150 psi @ 200° F SIG/59-2/316L
2-1/2" 3.047" 2.370" 10.000" 0.160" 2.700" 150 psi @ 200° F SIG/59-2.5/316L
3" 3.579" 2.870" 11.500" 0.160" 3.600" 150 psi @ 200° F SIG/59-3/316L





Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
Giraffe Stainless is a member of 3-A®, a voluntary organization committed to safeguarding public health and dairy product quality through a unique industry-regulated program of sanitary standards for equipment used in processing dairy foods.
Giraffe Stainless is a member of FISA, a national association of independent distributors and major manufacturers of sanitary supplies used in the food, dairy, beverage, pharmaceutical and personal care industries.
Giraffe Stainless is a member of FPSA, an association serving suppliers to the global food, beverage, and pharmaceutical industries
