Sanitary Manual Butterfly Valve mod.SIG/19

+
  • SANITARY MANUAL BUTTERFLY VALVE mod.SIG19.jpg
·　For Use With: Air, Beverage, Dairy, Deionized Water, Food, Pharmaceuticals, Water
·　All wetted surfaces are sanitary finish ≤ 32Ra
·　Mirror finish disc provides an even flow preventing obstructions and restrictions.
·　Opposing body bolt design prevents loosening between body sections due to vibration and operation, and provides positive sealing.
·　FDA approved available options: Silicone, EPDM, and Viton
·　12-Position SS304, Spring loaded level lock handle
·　Standard Tri-Clamp or butt weld ends. Other options available.
·　Suitable for actuation with pneumatic electric actuators
·　100% tested

Classification：

sanitary valves

buterfly valve

key word：

+86 138 0669 7418

Sales@giraffestainless.com

图片名称

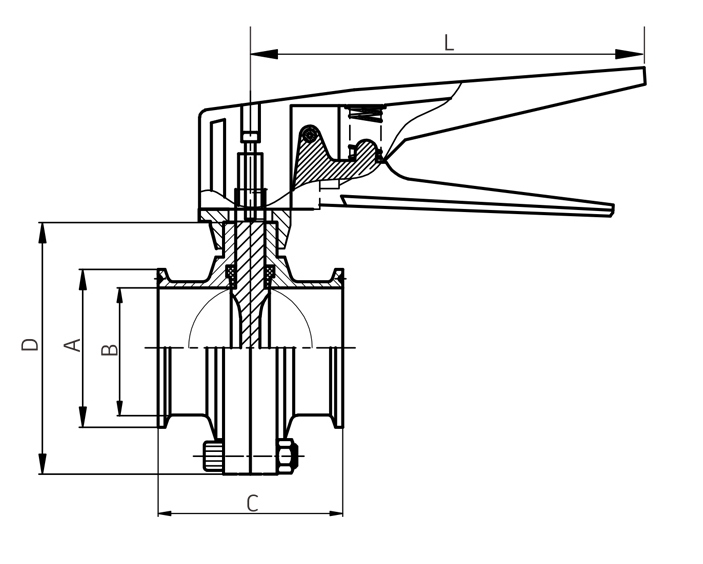

For technical drawings and 3-D models, click on a part number.

Product details

SIG/19 series is a manual type sanitary tri clamp butterfly valve with tri-clamp / tri-clamp ends and stainless spring loaded lever lock handle, which is widely used in process piping systems for isolation and control. SIG/19 butterfly valve operates manually by Stainless level handle (12-position), Manual handle, pneumatic actuator and electric actuator are interchangeable.



1
Tube OD A B C D L Max. Pressure Part number 304 Price/each Part number 316L Price/each
1/2" 0.984" 0.370" 2.598" 3.071" 6.181" 145 psi @ 200° F SIG/19-0.5/304 TBD SIG/19-0.5/316L TBD
3/4" 0.984" 0.620" 2.598" 3.071" 6.181" 145 psi @ 200° F SIG/19-0.75/304 TBD SIG/19-0.75/316L TBD
1" 1.984" 0.870" 2.598" 3.071" 6.181" 145 psi @ 200° F SIG/19-1/304 TBD SIG/19-1/316L TBD
1-1/2" 1.984" 1.370" 2.756" 3.386" 6.181" 145 psi @ 200° F SIG/19-1.5/304 TBD SIG/19-1.5/316L TBD
2" 2.516" 1.870" 2.992" 4.016" 6.181" 145 psi @ 200° F SIG/19-2/304 TBD SIG/19-2/316L TBD
2-1/2" 3.047" 2.370" 3.150" 4.527" 6.181" 145 psi @ 200° F SIG/19-2.5/304 TBD SIG/19-2.5/316L TBD
3" 3.579" 2.870" 3.307" 5.039" 6.181" 145 psi @ 200° F SIG/19-3/304 TBD SIG/19-3/316L TBD
4" 4.682" 3.834" 4.094" 6.063" 6.181" 145 psi @ 200° F SIG/19-4/304 TBD SIG/19-4/316L TBD





Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
Giraffe Stainless is a member of 3-A®, a voluntary organization committed to safeguarding public health and dairy product quality through a unique industry-regulated program of sanitary standards for equipment used in processing dairy foods.
Giraffe Stainless is a member of FISA, a national association of independent distributors and major manufacturers of sanitary supplies used in the food, dairy, beverage, pharmaceutical and personal care industries.
Giraffe Stainless is a member of FPSA, an association serving suppliers to the global food, beverage, and pharmaceutical industries
