Rectangular Sight Glass mod.T1A/509
· Wide range of lengths
· High Pressure Versions up to 25 bar
· Low profile, clean-line design with counter-sunk bolts
· Radius base flange available for flush fit with vessel interior
· Design Temperature: -10°C to 120°C(Silicone)
· Satin or Mirror Polish
Classification：
key word：
Product details

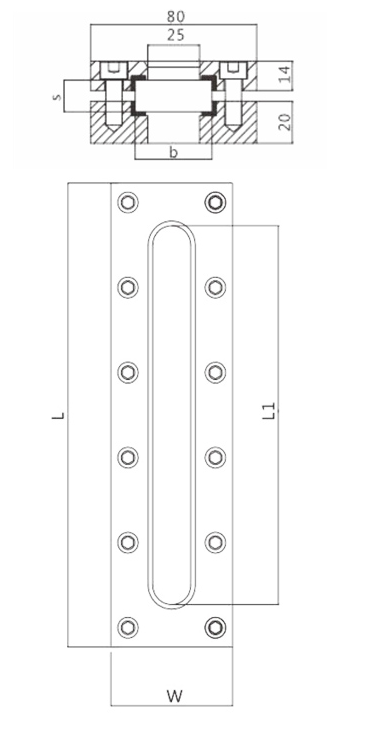

Rectangular Weld Pad Gages are designed to be welded to process vessels. They consist of a weld pad, glass, gaskets, cover flange and bolting. Visible glass sizes range from 1" to 4" in width and 6" to 24" in length.
The sight glass is clamped in place by a gasketed glass retainer held by threaded studs and nuts. Giraffe Stainless obround sight glasses are suitable for ASME code requirements. They are designed for 150 psi working pressure @ 500ºF depending on gasketing. They may be specified with flat or curved weld pads to fit vessel geometry. For rubber lined vessels, the corners of the weld pad are radiused for an even and consistent lining.
 |
|
Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
Giraffe Stainless is a member of 3-A®, a voluntary organization committed to safeguarding public health and dairy product quality through a unique industry-regulated program of sanitary standards for equipment used in processing dairy foods.
Giraffe Stainless is a member of FISA, a national association of independent distributors and major manufacturers of sanitary supplies used in the food, dairy, beverage, pharmaceutical and personal care industries.
Giraffe Stainless is a member of FPSA, an association serving suppliers to the global food, beverage, and pharmaceutical industries
