Inline Sight Glass mod.T1A/502

+
  • Inline Sight Glass mod.T1A502.jpg
·　For Use With: Air, Beverage, Dairy, Deionized Water, Food, Pharmaceuticals, Water
·　Temperature Range: See Gaskets
·　Use with 304/316L stainless steel tubes that meets ASTM A269 or ASTM A270
·　Certification: Material Certificate with Traceable Lot Number and Test Report
·　Specifications Met: 3-A Certified 63-04
·　Finish: No. 7 - ID & OD
·　To complete a connection, you’ll need two quick-clamp fittings, a clamp, and a gasket (all sold separately).

Classification：

sight glass

Products

key word：

+86 138 0669 7418

Sales@giraffestainless.com

图片名称

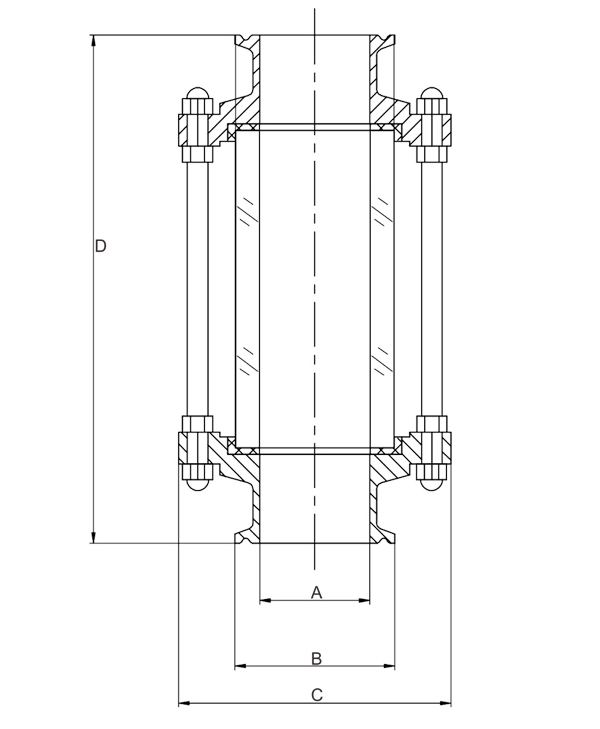

For technical drawings and 3-D models, click on a part number.

Product details

Tri Clamp inline sight glasses allow you to view product along tank connections, drains, or hoses. This type of sight glass is useful for tracking color or consistency when transferring product. Each stainless steel sight glass comes apart for easy cleaning.



1
Tube OD Flange OD(B) A D Max. Pressure Part Number 304 Price/each Part Number 316L Price/each
1/2" 0.984" 0.370" 6.142" 145 psi @ 200° F T1A/502-0.5/304 TBD T1A/502-0.5/316L TBD
3/4" 0.984" 0.620" 6.142" 145 psi @ 200° F T1A/502-0.75/304 TBD T1A/502-0.75/316L TBD
1" 1.984" 0.870" 6.142" 145 psi @ 200° F T1A/502-1/304 TBD T1A/502-1/316L TBD
1-1/2" 1.984" 1.370" 6.299" 145 psi @ 200° F T1A/502-1.5/304 TBD T1A/502-1.5/316L TBD
2" 2.516" 1.870" 6.457" 145 psi @ 200° F T1A/502-2/304 TBD T1A/502-2/316L TBD
2-1/2" 3.047" 2.370" 6.614" 145 psi @ 200° F T1A/502-2.5/304 TBD T1A/502-2.5/316L TBD
3" 3.579" 2.870" 6.772" 145 psi @ 200° F T1A/502-3/304 TBD T1A/502-3/316L TBD
4" 4.682" 3.834" 7.402" 145 psi @ 200° F T1A/502-4/304 TBD T1A/502-4/316L TBD





Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
Giraffe Stainless is a member of 3-A®, a voluntary organization committed to safeguarding public health and dairy product quality through a unique industry-regulated program of sanitary standards for equipment used in processing dairy foods.
Giraffe Stainless is a member of FISA, a national association of independent distributors and major manufacturers of sanitary supplies used in the food, dairy, beverage, pharmaceutical and personal care industries.
Giraffe Stainless is a member of FPSA, an association serving suppliers to the global food, beverage, and pharmaceutical industries
