Hex Pipe Nipples Schedule 40

+
  • Hex Pipe Nipples Schedule 40.jpg
· For Use With: Natural Gas, Steam, Oil, Water, Air
· 150# NPT Pipe Fittings
· ASTM A-733
· ASME/ANSI B1.20.1 (pipe threading standard)
· ASTM A-530, ASTM A-312 (chemical and mechanical requirements)
· 304 & 316 stainless steel dual specification L-grade
· Manufacturing facility is ISO 9001:2008

Classification:

key word:

Product details

The Nipple Threads are National Pipe Thread (NPT), also known as American National Standard Taper Pipe Thread. This is the common thread used for threaded pipe connections in the United States. NPT is defined by ANSI/ASME standard B1.20.1



1

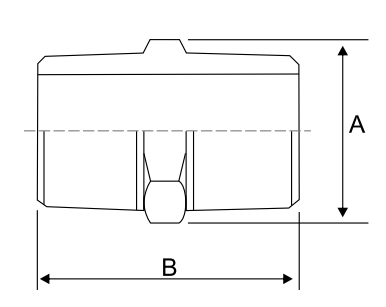

Pipe OD A(mm) B(mm) Part number 304 Price/each Part number 316L Price/each
1/8" 10 29 RET10080 TBD IFC10080 TBD
1/4" 14.6 29 RET10081 TBD IFC10081 TBD
3/8" 18.1 31 RET10082 TBD IFC10082 TBD
1/2" 22.4 33.5 RET10083 TBD IFC10083 TBD
3/4" 28 38 RET10084 TBD IFC10084 TBD
1" 35 41.5 RET10085 TBD IFC10085 TBD
1-1/4" 44 48.5 RET10086 TBD IFC10086 TBD
1-1/2" 50 48.5 RET10087 TBD IFC10087 TBD
2" 62 57 RET10088 TBD IFC10088 TBD
2-1/2" 78 67 RET10089 TBD IFC10089 TBD
3" 91 75 RET10090 TBD IFC10090 TBD
4" 116 81 RET10091 TBD IFC10091 TBD





Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
Giraffe Stainless is a member of 3-A®, a voluntary organization committed to safeguarding public health and dairy product quality through a unique industry-regulated program of sanitary standards for equipment used in processing dairy foods.
Giraffe Stainless is a member of FISA, a national association of independent distributors and major manufacturers of sanitary supplies used in the food, dairy, beverage, pharmaceutical and personal care industries.
Giraffe Stainless is a member of FPSA, an association serving suppliers to the global food, beverage, and pharmaceutical industries
