Eccentric Reducer Schedule 10/40 Butt Weld Fittings

+
  • Giraffe Stainless
·　Stainless Material: ASTM A403/A960
·　Dimensions: ASME B16.9/MSS SP-43
·　Manufacturing: ISO 9001:2008
·　Meets: MS SP-43
·　Buttweld Fittings - Stainless Steel

Classification：

industrial fittings

key word：

+86 138 0669 7418

Sales@giraffestainless.com

Giraffe Stainless

For technical drawings and 3-D models, click on a part number.

Product details

Butt weld stainless fittings include a bevel chamfer on each fitting each to join with other fittings and pipe via wire or stick welding.  Butt welding is a commonly employed method to join stainless components.  Schedule 10 is of a thinner pipe wall thickness than schedule 40



Giraffe Stainless

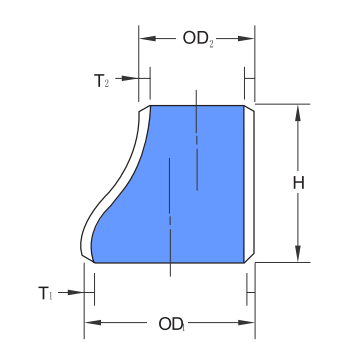

Pipe OD H(mm) OD1(mm) OD2(mm) Part number 304 Price/each Part number 316L Price/each
1"x1/2" 50.8 33.4 21.3 RET10242 TBD IFC10242 TBD
1"x3/4" 50.8 33.4 26.7 RET10243 TBD IFC10243 TBD
1-1/4"x1/2" 50.8 42.2 21.3 RET10244 TBD IFC10244 TBD
1-1/4"x3/4" 50.8 42.2 26.7 RET10245 TBD IFC10245 TBD
1-1/4"x1" 50.8 42.2 33.4 RET10246 TBD IFC10246 TBD
1-1/2"x1/2" 63.5 48.3 21.3 RET10247 TBD IFC10247 TBD
1-1/2"x3/4" 63.5 48.3 26.7 RET10248 TBD IFC10248 TBD
1-1/2"x1" 63.5 48.3 33.4 RET10249 TBD IFC10249 TBD
1-1/2"x1-1/4" 63.5 48.3 42.2 RET10250 TBD IFC10250 TBD
2"x1" 76.2 60.3 33.4 RET10251 TBD IFC10251 TBD
2"x1-1/4" 76.2 60.3 42.2 RET10252 TBD IFC10252 TBD
2"x1-1/2" 76.2 60.3 48.3 RET10253 TBD IFC10253 TBD
2-1/2"x1-1/4" 88.9 73 42.2 RET10254 TBD IFC10254 TBD
2-1/2"x1-1/2" 88.9 73 48.3 RET10255 TBD IFC10255 TBD
2-1/2"x2" 88.9 73 60.3 RET10256 TBD IFC10256 TBD
3"x1-1/2" 88.9 88.9 48.3 RET10257 TBD IFC10257 TBD
3"x2" 88.9 88.9 60.3 RET10258 TBD IFC10258 TBD
3"x2-1/2" 88.9 88.9 73 RET10259 TBD IFC10259 TBD
4"x2" 101.6 114.3 60.3 RET10260 TBD IFC10260 TBD
4"x2-1/2" 101.6 114.3 73 RET10261 TBD IFC10261 TBD
4"x3" 101.6 114.3 88.9 RET10262 TBD IFC10262 TBD
5"x4" 127 141.3 114.3 RET10263 TBD IFC10263 TBD
6"x4" 139.7 168.3 114.3 RET10264 TBD IFC10264 TBD
6"x5" 139.7 168.3 141.3 RET10265 TBD IFC10265 TBD





Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
