D7W Equal Tee

+
  • D7W Equal Tee.jpg
·　For Use With: Air, Beverage, Dairy, Beer, Food, Pharmaceuticals, Water
·　DIN EN 10357 fittings
·　DIN11850/DIN11851/DIN11852 fittings
·　DIN32676 fittings
·　For Pipe acc. to DIN EN 10375
·　Max.Pressure: PN10
·　Max. Temperature: 250° F, except hose fittings are unrated.
·　Available with WAZ 3.1 in accordance with EN 10204

Classification：

Sanitary DIN fittings

weld fittings

key word：

+86 138 0669 7418

Sales@giraffestainless.com

图片名称

For technical drawings and 3-D models, click on a part number.

Product details

DIN EN 10357 fittings meet an international standard for butt-weld fitting specifications. This standard is common in the food and chemical industries.



1

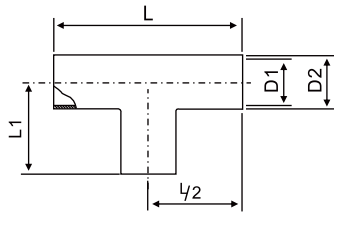

Tube OD D2 D1 L L1 Part Number 304 Price/each Part Number 316L Price/each
DN10 13 10 52 26 D7W-DN10/304 TBD D7W-DN10/316L TBD
DN15 19 16 70 35 D7W-DN15/304 TBD D7W-DN15/316L TBD
DN20 23 20 80 40 D7W-DN20/304 TBD D7W-DN20/316L TBD
DN25 29 26 100 50 D7W-DN25/304 TBD D7W-DN25/316L TBD
DN32 35 32 110 55 D7W-DN32/304 TBD D7W-DN32/316L TBD
DN40 41 38 120 60 D7W-DN40/304 TBD D7W-DN40/316L TBD
DN50 53 50 140 70 D7W-DN50/304 TBD D7W-DN50/316L TBD
DN65 70 66 160 80 D7W-DN65/304 TBD D7W-DN65/316L TBD
DN80 85 81 180 90 D7W-DN80/304 TBD D7W-DN80/316L TBD
DN100 104 100 200 100 D7W-DN100/304 TBD D7W-DN100/316L TBD
DN125 129 125 375 187.5 D7W-DN125/304 TBD D7W-DN125/316L TBD
DN150 154 150 450 225 D7W-DN150/304 TBD D7W-DN150/316L TBD
DN200 204 200 600 300 D7W-DN200/304 TBD D7W-DN200/316L TBD





Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
