Concentric Reducer Schedule 10/40 Butt Weld Fittings

+
  • Giraffe Stainless
·　Stainless Material: ASTM A403/A960
·　Dimensions: ASME B16.9/MSS SP-43
·　Manufacturing: ISO 9001:2008
·　Meets: MS SP-43
·　Buttweld Fittings - Stainless Steel

Classification：

industrial fittings

key word：

+86 138 0669 7418

Sales@giraffestainless.com

Giraffe Stainless

For technical drawings and 3-D models, click on a part number.

Product details

Butt weld stainless fittings include a bevel chamfer on each fitting each to join with other fittings and pipe via wire or stick welding.  Butt welding is a commonly employed method to join stainless components.  Schedule 10 is of a thinner pipe wall thickness than schedule 40



Giraffe Stainless

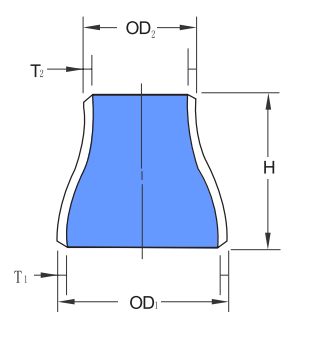

Pipe OD H(mm) OD1(mm) OD2(mm) Part number 304 Price/each Part number 316L Price/each
1"x1/2" 50.8 33.4 21.3 RET10218 TBD IFC10218 TBD
1"x3/4" 50.8 33.4 26.7 RET10219 TBD IFC10219 TBD
1-1/4"x1/2" 50.8 42.2 21.3 RET10220 TBD IFC10220 TBD
1-1/4"x3/4" 50.8 42.2 26.7 RET10221 TBD IFC10221 TBD
1-1/4"x1" 50.8 42.2 33.4 RET10222 TBD IFC10222 TBD
1-1/2"x1/2" 63.5 48.3 21.3 RET10223 TBD IFC10223 TBD
1-1/2"x3/4" 63.5 48.3 26.7 RET10224 TBD IFC10224 TBD
1-1/2"x1" 63.5 48.3 33.4 RET10225 TBD IFC10225 TBD
1-1/2"x1-1/4" 63.5 48.3 42.2 RET10226 TBD IFC10226 TBD
2"x1" 76.2 60.3 33.4 RET10227 TBD IFC10227 TBD
2"x1-1/4" 76.2 60.3 42.2 RET10228 TBD IFC10228 TBD
2"x1-1/2" 76.2 60.3 48.3 RET10229 TBD IFC10229 TBD
2-1/2"x1-1/4" 88.9 73 42.2 RET10230 TBD IFC10230 TBD
2-1/2"x1-1/2" 88.9 73 48.3 RET10231 TBD IFC10231 TBD
2-1/2"x2" 88.9 73 60.3 RET10232 TBD IFC10232 TBD
3"x1-1/2" 88.9 88.9 48.3 RET10233 TBD IFC10233 TBD
3"x2" 88.9 88.9 60.3 RET10234 TBD IFC10234 TBD
3"x2-1/2" 88.9 88.9 73 RET10235 TBD IFC10235 TBD
4"x2" 101.6 114.3 60.3 RET10236 TBD IFC10236 TBD
4"x2-1/2" 101.6 114.3 73 RET10237 TBD IFC10237 TBD
4"x3" 101.6 114.3 88.9 RET10238 TBD IFC10238 TBD
5"x4" 127 141.3 114.3 RET10239 TBD IFC10239 TBD
6"x4" 139.7 168.3 114.3 RET10240 TBD IFC10240 TBD
6"x5" 139.7 168.3 141.3 RET10241 TBD IFC10241 TBD





Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
