90 Elbow Long Radius Schedule 40 Butt Weld Fittings

+
  • 90 Elbow Long Radius Schedule 40 Butt Weld Fittings.jpg
·　Stainless Material: ASTM A403/A960
·　Dimensions: ASME B16.9/MSS SP-43
·　Manufacturing: ISO 9001:2008
·　Meets: MS SP-43
·　Buttweld Fittings - Stainless Steel

Classification：

industrial fittings

key word：

+86 138 0669 7418

Sales@giraffestainless.com

图片名称

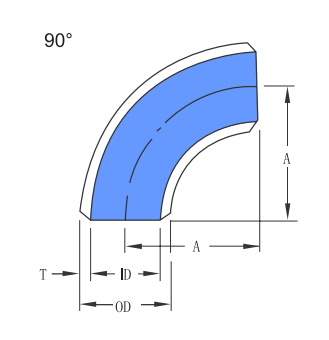

For technical drawings and 3-D models, click on a part number.

Product details

Butt weld stainless fittings include a bevel chamfer on each fitting each to join with other fittings and pipe via wire or stick welding.  Butt welding is a commonly employed method to join stainless components.  Schedule 10 is of a thinner pipe wall thickness than schedule 40



1
Pipe OD 0D(mm) T(mm) A(mm) Part number 304 Price/each Part number 316L Price/each
1/2" 21.3 2.77 38.1 RET10128 TBD IFC10128 TBD
3/4" 26.7 2.87 38.1 RET10129 TBD IFC10129 TBD
1" 33.4 3.38 38.1 RET10130 TBD IFC10130 TBD
1-1/4" 42.2 3.56 47.6 RET10131 TBD IFC10131 TBD
1-1/2" 48.3 3.68 57.2 RET10132 TBD IFC10132 TBD
2" 60.3 3.91 76.2 RET10133 TBD IFC10133 TBD
2-1/2" 73 5.16 95.3 RET10134 TBD IFC10134 TBD
3" 88.9 5.49 114.3 RET10135 TBD IFC10135 TBD
3-1/2" 101.6 5.74 133.4 RET10136 TBD IFC10136 TBD
4" 114.3 6.02 152.4 RET10137 TBD IFC10137 TBD
5" 141.3 6.55 190.5 RET10138 TBD IFC10138 TBD
6" 168.3 7.11 228.6 RET10139 TBD IFC10139 TBD
8" 219.1 8.18 304.8 RET10140 TBD IFC10140 TBD
10" 273.1 9.27 381 RET10141 TBD IFC10141 TBD
12" 323.9 9.53 457.2 RET10142 TBD IFC10142 TBD
