45 Elbow Long Radius Schedule 10 Butt Weld Fittings

+
  • 45 Elbow Long Radius Schedule 10 Butt Weld Fittings.jpg
·　Stainless Material: ASTM A403/A960
·　Dimensions: ASME B16.9/MSS SP-43
·　Manufacturing: ISO 9001:2008
·　Meets: MS SP-43
·　Buttweld Fittings - Stainless Steel

Classification：

industrial fittings

key word：

+86 138 0669 7418

Sales@giraffestainless.com

图片名称

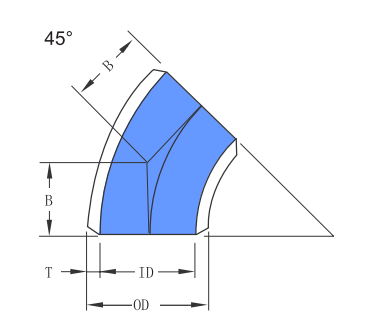

For technical drawings and 3-D models, click on a part number.

Product details

Butt weld stainless fittings include a bevel chamfer on each fitting each to join with other fittings and pipe via wire or stick welding.  Butt welding is a commonly employed method to join stainless components.  Schedule 10 is of a thinner pipe wall thickness than schedule 40



1
Pipe OD 0D(mm) T(mm) B(mm) Part number 304 Price/each Part number 316L Price/each
1/2" 21.3 2.11 15.9 RET10158 TBD IFC10158 TBD
3/4" 26.7 2.11 19.1 RET10159 TBD IFC10159 TBD
1" 33.4 2.77 22.2 RET10160 TBD IFC10160 TBD
1-1/4" 42.2 2.77 25.4 RET10161 TBD IFC10161 TBD
1-1/2" 48.3 2.77 28.6 RET10162 TBD IFC10162 TBD
2" 60.3 2.77 34.9 RET10163 TBD IFC10163 TBD
2-1/2" 73 3.05 44.5 RET10164 TBD IFC10164 TBD
3" 88.9 3.05 50.8 RET10165 TBD IFC10165 TBD
3-1/2" 101.6 3.05 57.2 RET10166 TBD IFC10166 TBD
4" 114.3 3.05 63.5 RET10167 TBD IFC10167 TBD
5" 141.3 3.40  79.4 RET10168 TBD IFC10168 TBD
6" 168.3 3.40  95.3 RET10169 TBD IFC10169 TBD
8" 219.1 3.76 127 RET10170 TBD IFC10170 TBD
10" 273.1 4.19 158.7 RET10171 TBD IFC10171 TBD
12" 323.9 4.57 190.5 RET10172 TBD IFC10172 TBD
