2014N NPT 304/316 STAINLESS STEEL 2PC. CAST BALL VALVE FULL PORT

+
  • 2014N NPT 304-316 STAINLESS STEEL 2PC. CAST BALL VALVE FULL PORT.jpg
·　For Use With: Natural Gas, Steam, Oil, Water, Air
·　Connection : Female NPT (National Pipe Thread)
·　Materials: 304/316 Cast Stainless Steel
·　Seat: PTFE
·　Medium: Water, Oil, Gas
·　Pressure Rating: 1000 PSI
·　Temperature Rating: -60° F to 450° F
·　Handle: Blow-Out Proof
·　Handle Locking Mechanism: handle equipped with locking device (Re-movable)

Classification：

industrial fittings

key word：

+86 138 0669 7418

Sales@giraffestainless.com

图片名称

For technical drawings and 3-D models, click on a part number.

Product details

2-Piece Stainless steel ball valves with PTFE seals & seats. Stainless steel ball valves with PTFE (Teflon) seats & seals offer excellent corrosion resistance for most applications. Stainless steel & PTFE work well in applications including but not limited to water, oil, gas/air, light alkali's and acids, biodiesel, fuels and alcohols. These ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent usage. All metal pieces of our valves are stainless steel 304 or 316, including the nuts and other exterior metals. WOG1000 are for high pressure and industrial applications.



1

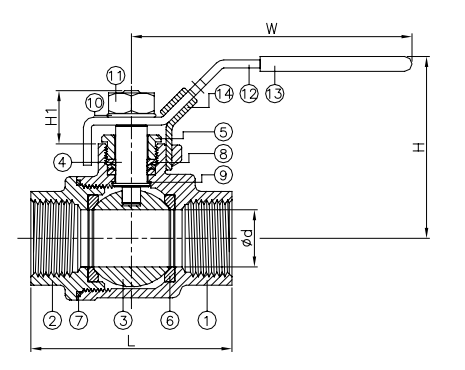

Tube OD Size d(mm) L(mm) H(mm) Kg Part number 304 Price/each Part number 316L Price/each
1/4" DN8 10 54 58.5 0.2 RET10001 TBD IFC10001 TBD
3/8" DN10 12 54 58.5 0.2 RET10002 TBD IFC10002 TBD
1/2" DN15 15 61.5 58.5 0.3 RET10003 TBD IFC10003 TBD
3/4" DN20 20 70.5 63.5 0.5 RET10004 TBD IFC10004 TBD
1" DN25 25 81 78 0.8 RET10005 TBD IFC10005 TBD
1-1/4" DN32 32 95 83 1.1 RET10006 TBD IFC10006 TBD
1-1/2" DN40 38 105 102 1.8 RET10007 TBD IFC10007 TBD
2" DN50 50 118 108 2.7 RET10008 TBD IFC10008 TBD





Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
Giraffe Stainless is a member of 3-A®, a voluntary organization committed to safeguarding public health and dairy product quality through a unique industry-regulated program of sanitary standards for equipment used in processing dairy foods.
Giraffe Stainless is a member of FISA, a national association of independent distributors and major manufacturers of sanitary supplies used in the food, dairy, beverage, pharmaceutical and personal care industries.
Giraffe Stainless is a member of FPSA, an association serving suppliers to the global food, beverage, and pharmaceutical industries
