1000 PSI Stainless Steel Mini Ball Valves

+
  • 1000 PSI Stainless Steel Mini Ball Valves.jpg
· For Use With: Natural Gas, Steam, Oil, Water, Air
· 1000 PSI/PN63
· NPT, FNPT Connection
· Blow-Out Proof Stem
· Applicable Temperature: -29° to 180° F
· Threads: ASM B1.20.1 BS21 DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
· PED97/23/EC (CE0035) Approved

Classification:

key word:

Product details

Mini ball valve is a quarter turn type ball valve that used for shut off application in a pipework. The handle can be rotate at 90 degree to open or close the valve. It is a threaded end ball valve where one side male thread and another side female thread.

Mini ball valves are ideal for use in small, confined spaces, where larger valves are not necessary. They are suitable for residential and light commercial applications in domestic hot and cold water systems, natural or bottled gas and compressed air systems.



1

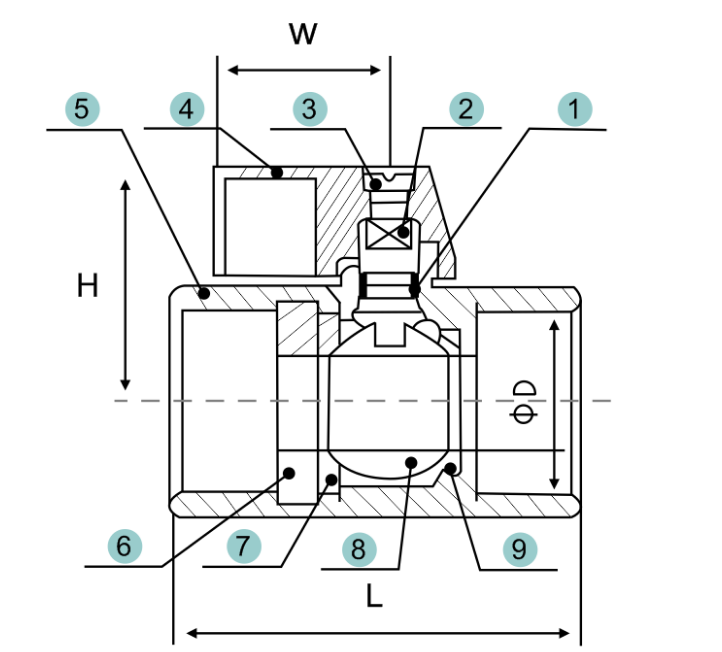

Tube OD D(mm) H(mm) W(mm) L(mm) Part number 304 Price/each Part number 316L Price/each
1/4" 7 26.5 22.8 42 RET10031 TBD IFC10031 TBD
3/8" 7 26.5 22.8 42 RET10032 TBD IFC10032 TBD
1/2" 9.2 28.3 22.8 46 RET10033 TBD IFC10033 TBD
3/4" 12.5 31.5 22.8 54 RET10034 TBD IFC10034 TBD
1" 15 34 22.8 65 RET10035 TBD IFC10035 TBD
